Ground Screw Products
At Anchoring Colorado, we provide a diverse selection of ICC certified Ground Screws. Our Ground Screws are designed to meet the highest industry standards and are engineered to provide reliable and durable foundation solutions for a variety of applications. Whether you are looking to secure solar panels, decks, fences, or other structures, our ICC certified Ground Screws offer a cost-effective and environmentally friendly alternative to traditional concrete caissons. With easy installation and minimal environmental impact, our Ground Screws are the ideal choice for your anchoring needs.
CONSTRUCTION
- Q235B Steel
- Continuous Welded Helix
- Hot-Dipped Galvanized According to ASTM123 75 micron (avg. min. 0.0762 mm)
Pricing
We offer competitive tiered pricing to provide the best value for our customers. Our pricing model is structured in tiers, with discounts increasing as the quantity of purchased items rises. Whether you need a small order or larger bulk quantities, our tiered pricing ensures you get the best rates, making our high-quality ground screws and accessories affordable and accessible for projects of all sizes. For more details on our pricing and bulk discounts, please contact us directly.
Products
Model 3 Screws
| Product Description: | Length: | Diameter: | Wall Thickness: |
|---|---|---|---|
| Model 3 68x864x2mm | 2.83 ft | 2.68 in | 2.00 mm |
| Model 3 50x1000x2mm | 3.28 ft | 1.97 in | 2.00 mm |
| Model 3 76x1300x3.5mm | 4.27 ft | 2.99 in | 3.50 mm |
| Model 3 76x2500x4mm 880 Thread | 8.20 ft | 2.99 in | 4.00 mm |
| Model 3 102x1550x3.75mm 880 Thread | 5.09 ft | 4.02 in | 3.75 mm |
| Model 3 102x2050x3.75mm 880 Thread | 6.73 ft | 4.02 in | 3.75 mm |
| Model 3 114x1800x3.75mm 880 Thread | 5.91 ft | 4.49 in | 3.75 mm |
ICC Certified Screws
| Product Description: | Length: | Diameter: | Wall Thickness: |
|---|---|---|---|

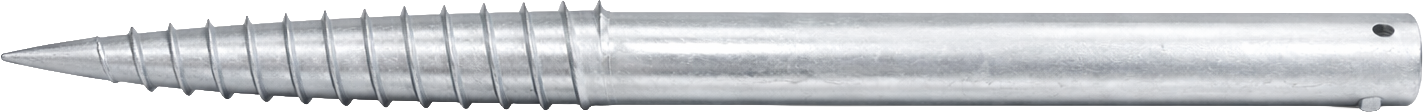

| IM3316 (ICC) 76x1600x3.75mm 610 Thread | 5.25 ft | 2.99 in | 3.75 mm |
| IM3320 (ICC) 76x2000x3.75mm 610 Thread | 6.56 ft | 2.99 in | 3.75 mm |

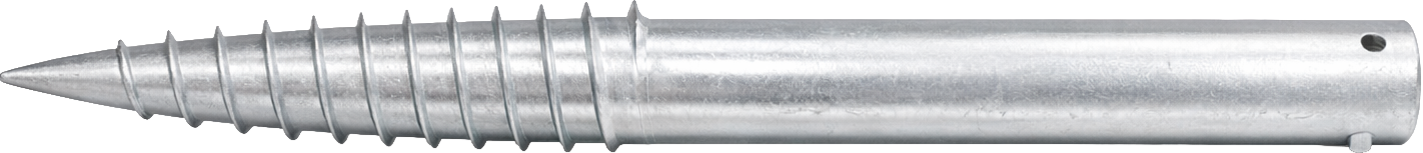

| IM34516 (ICC) 114x1600x3.75mm 610 Thread | 5.25 ft | 4.49 in | 3.75 mm |
| IM34518 (ICC) 114x1800x3.75mm 610 Thread | 5.91 ft | 4.49 in | 3.75 mm |
| IM34520 (ICC) 114x2000x3.75mm 610 Thread | 6.56 ft | 4.49 in | 3.75 mm |
Model 5 Screws
| Product Description: | Length: | Diameter: | Wall Thickness: |
|---|---|---|---|
| Model 5 76x1600x3mm | 5.25 ft | 2.99 in | 3.00 mm |
| Model 5 76x1800x3mm | 5.91 ft | 2.99 in | 3.00 mm |
| Model 5 76x2000x3mm | 6.56 ft | 2.99 in | 3.00 mm |
Flange Inserts for Every Project
Our comprehensive selection of flange inserts are meticulously crafted to cater to a diverse range of project requirements. From 3” to 4x4 dimensions, including 6x6, six-hole circle, square, and flex circle variations, our products are renowned for their exceptional versatility and unwavering commitment to quality. Choose our flange inserts for superior performance and reliability in every project.
| Inserts: | Flanges: | Corresponding Diameters: |
|---|---|---|
|
|

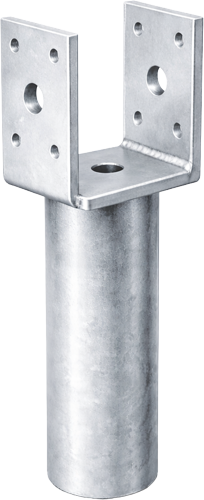

3” Beam Flange | 3" Ground Screw |
|
|

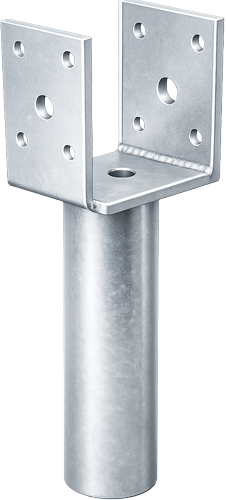

4×4 Flange | 3" Ground Screw |
|
|

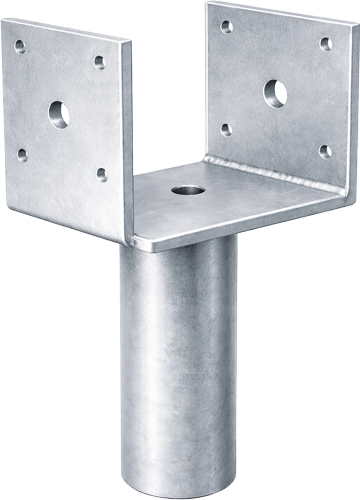

6×6 Flange | 3" Ground Screw 4.5" Ground Screw |
|
|

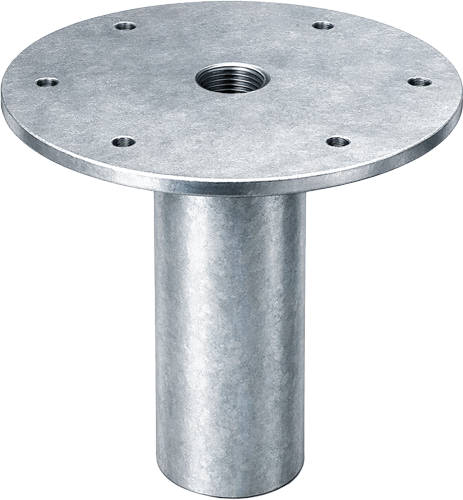

Six Hole Circle Flange | 3" Ground Screw 4.5" Ground Screw |
|
|

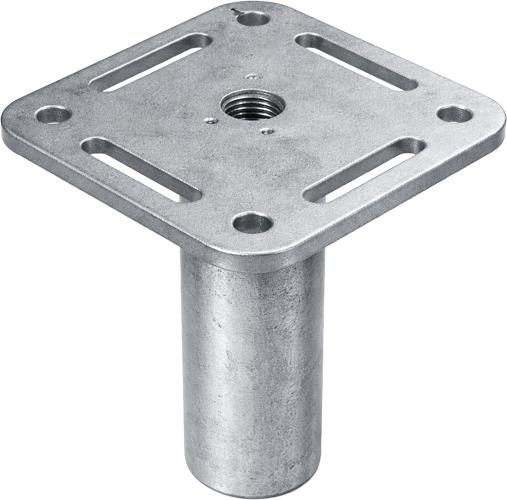

Square Flange | 3" Ground Screw 4.5" Ground Screw |
|
|

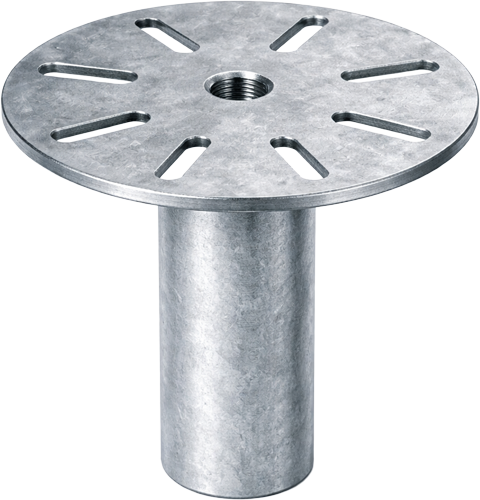

Flex Circle Flange | 3" Ground Screw 4.5" Ground Screw |

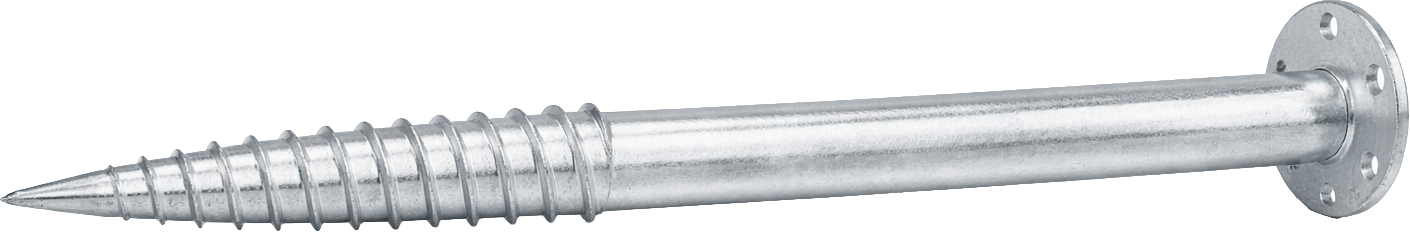

Welded Flange Ground Screws
Our Welded Flange Screws are engineered to connect with diverse above-ground structures like wooden posts, beams, metal plates, and more. Available in a range of flange shapes and configurations, these screws are tailored to suit the requirements and design of your construction project.
| Length Ranges: | Diameter Ranges: | Wall Thickness Ranges: | Thread Length: |
|---|---|---|---|
| 5' 3" → 6' 8" | 3" → 4.5" | 0.12" → 0.15" | 34.65" |
| Flanges: | Description: | Corresponding Lengths: |
|---|---|---|
|
|
3" inch - 6 Hole Circluar Flange | 5' 3", 5' 11", 6' 8" |
|
|
3" inch - 6 Hole Hexagonal Flange | 6' 8" |
Equipment Purchase Options
For those who prefer to handle the installation themselves, we offer all the necessary equipment for purchase. Our range of equipment ensures that you have everything needed for a successful installation.
| Drive-head Adapters: | Coinciding Drivers: |
|---|---|
| M5 | E DR or MM10K |
| 50mm | E DR or MM10K |
| 68mm | E DR or MM10K |
| 76mm | E DR or 2" HEX or MM10K |
| 89mm | E DR or MM10K |
| 102mm | E DR or 2' HEX or MM10K |
| 114mm | E DR or MM10K |
| Drivetools & Adapters: |
|---|
| AU-002915-K DRIVETOOL - 2.5" HEX-3.5"-SLOT-K |
| AU-003080-K DRIVETOOL - 2" HEX HUB - 4" SLOTTED PILE |
| AU-003011-K DRIVETOOL - 2" HEX-3" PILE KIT |
| AU-002002-K ADAPTOR HEX - 2'' FEMALE -2.5'' MALE - K |
| Equipment: | Total Full-Sized Skid Steer: |
|---|---|
| Digga MM-10K-11-FR | Digga MM-10K-11-ML (mini skid steer) |
| FR-001247 (full size skid steer mounting bracket) |
E-Driver Kit 2001.2 |
Let’s Talk About Your Project
Ready to get started with your next project? Whether you need ground screws for a small deck or a large-scale commercial installation, we’re here to help. Contact us today to discuss your specific needs and discover how our innovative ground screw solutions can benefit your project. Reach out to our team for personalized recommendations and detailed pricing information.
